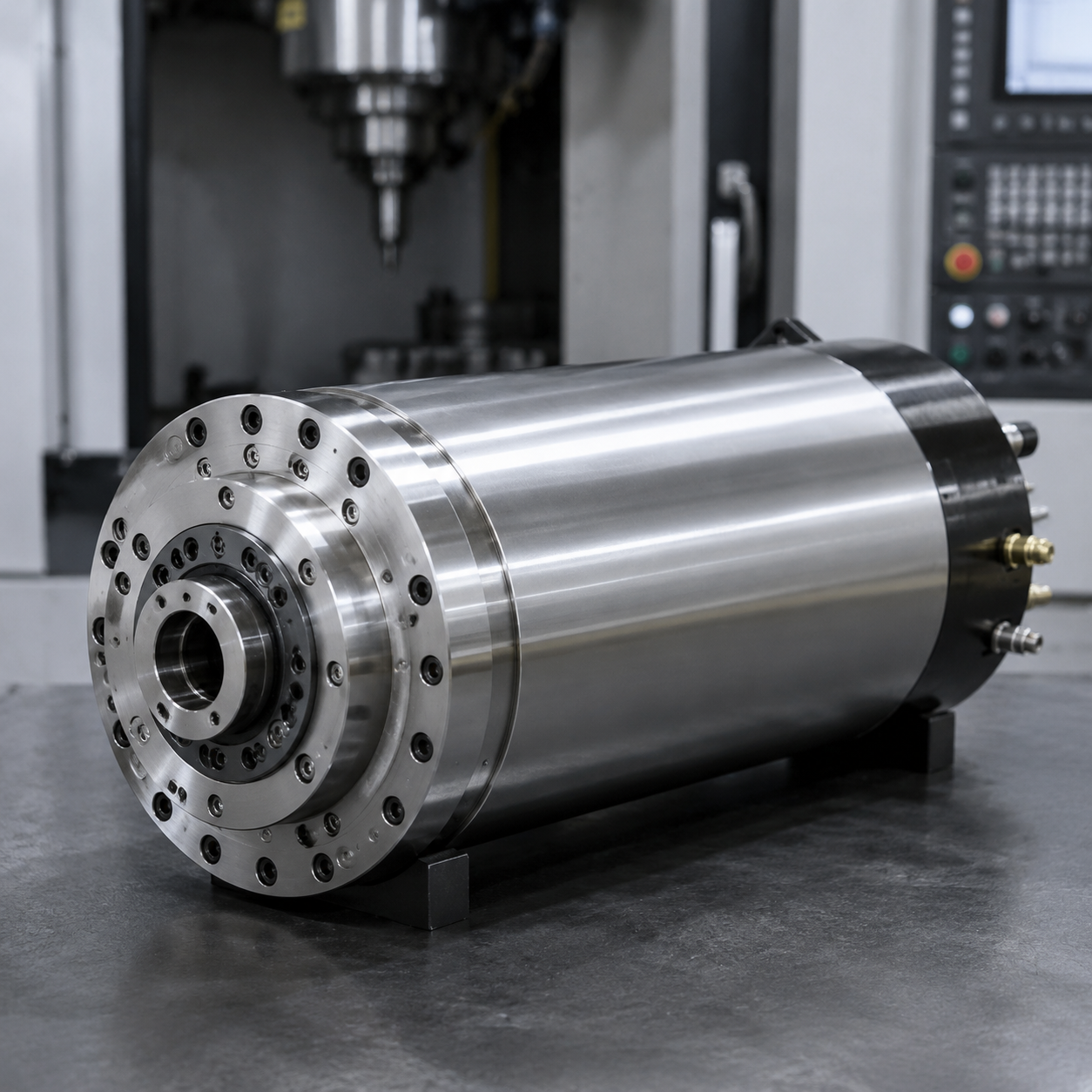

The transition from all-steel to hybrid ceramic bearings represents one of the most significant performance advances in machine tool spindle technology. By replacing traditional bearing steel balls with silicon nitride (Si3N4) ceramic balls, spindle manufacturers are achieving speed ratings, thermal stability, and service life that were unattainable with conventional bearing materials. This article examines the material properties driving this revolution.
Si3N4 vs Bearing Steel: A Material Comparison
The superiority of silicon nitride for high-speed bearing applications stems from fundamental differences in material properties. Bearing steel (typically AISI 52100 / 100Cr6) has served the industry well for decades, but its physical limitations become acute at the speeds demanded by modern machining processes.
| Property | Si3N4 Ceramic | Bearing Steel (52100) | Advantage |
|---|---|---|---|
| Density | 3.2 g/cm3 | 7.8 g/cm3 | 60% lighter |
| Hardness | 1,600 HV | 700 HV | 2.3x harder |
| Elastic Modulus | 320 GPa | 210 GPa | 50% stiffer |
| Thermal Expansion | 3.2 x 10-6/K | 12.5 x 10-6/K | 75% lower |
| Max Operating Temp | 1,000°C | 120°C | 8x higher |
| Electrical Conductivity | Insulator | Conductor | Prevents arcing |
How These Properties Translate to Spindle Performance
The 60% lower density is the single most impactful advantage. At high rotational speeds, centrifugal force on the balls scales with density and the square of speed. Lighter ceramic balls generate dramatically lower centrifugal loads, reducing contact stress between ball and raceway. This directly enables higher speed ratings — typically 30-50% higher than equivalent all-steel bearings — while maintaining acceptable L10 fatigue life.
The 50% higher elastic modulus (stiffness) means ceramic balls deform less under load. This translates to higher bearing stiffness — a critical parameter for machining accuracy. Spindles equipped with hybrid ceramic bearings exhibit measurably lower deflection under cutting loads, contributing to better surface finish and tighter dimensional control.
The 75% lower thermal expansion coefficient provides critical dimensional stability across the spindle's operating temperature range. As a spindle warms from ambient to its steady-state operating temperature (typically 35-45 degrees C at the bearings), the steel spindle shaft and housing expand more than the ceramic balls. This differential can actually work advantageously — helping to maintain optimal bearing preload as the spindle reaches thermal equilibrium, whereas all-steel bearings may experience preload reduction at temperature.
Electrical Insulation: Solving the Shaft Current Problem
Silicon nitride's electrically insulating property addresses a destructive failure mode unique to motorized spindles: electrical erosion from shaft currents. Variable frequency drives (VFDs) used to control spindle motors generate common-mode voltages that can induce current flow through the bearings. In all-steel bearings, these currents arc through the lubricant film, creating microscopic pits on the raceway surface — a phenomenon known as electrical fluting. Over time, these pits grow, generating noise, vibration, and ultimately catastrophic bearing failure. Ceramic balls break the electrical circuit, eliminating this failure mode entirely and significantly extending bearing service life in VFD-driven spindles.
Luoyang Songju Ceramic Bearing Offering
Luoyang Songju offers ceramic hybrid angular contact ball bearings in P4 and P2 accuracy grades, with bore diameters from 10mm to 200mm. Our hybrid bearings pair Si3N4 ceramic balls with premium bearing steel rings, available in 15-degree and 25-degree contact angles with phenolic, PEEK, or brass cage options. Every ceramic bearing undergoes 100% testing including vibration analysis and dimensional inspection. Contact us for matched bearing sets with preload ground to your spindle design specifications.
The ceramic bearing revolution is not merely about achieving higher RPM — it is about fundamentally improving spindle reliability, accuracy, and service life across the entire operating envelope. As silicon nitride ball manufacturing quality continues to improve and costs decline, hybrid ceramic bearings are transitioning from a premium option to the default specification for any spindle operating above 12,000 RPM.
